Client Background
Our client, an established manufacturer in the water treatment industry in the United States, specializes in providing high-quality filtration solutions for various applications. They approached us with a requirement for a robust filtration system capable of handling high-pressure operations.
Project Overview

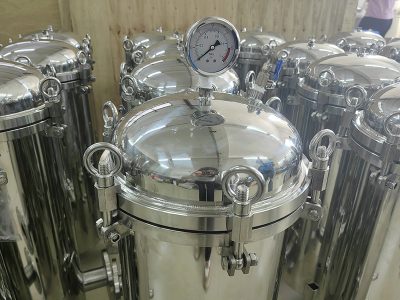

- Product: Multi Cartridge Filter Housing
- Cartridge Size: 20 inches
- Number of Cartridges: 7
- Material: Stainless Steel 304 (SS304)
- Pressure Rating: 10 bar
- Wall Thickness: 3 mm
- Operational Pressure: 10 bar
- Height Above Ground: 100 mm
- Inlet/Outlet Connection: Flange – 50 mm
Objectives
- Design and manufacture a multi cartridge filter housing that fulfills the client’s specifications for size, material, and pressure ratings.
- Ensure durability and reliability in high-pressure applications.
- Facilitate easy integration into the client’s existing filtration systems with appropriate inlet/outlet connections.
Customization Process
Initial Consultation:
Our engineering team conducted an in-depth consultation with the client to gather detailed specifications and application requirements. This step ensured we fully understood their filtration needs and how our product could enhance their operations.
Design Development:
Using advanced CAD software, we designed the multi cartridge filter housing, ensuring it met the following specific requirements:

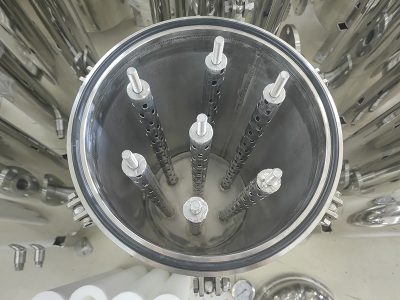

Dimensions: Designed to accommodate 7 cartridges, each measuring 20 inches in length, making efficient use of space.
Material Selection: Chose SS304 stainless steel for its excellent resistance to corrosion and durability in demanding environments.
Pressure Testing:
The filter housing was designed to withstand a pressure rating of 10 bar. Our team conducted rigorous pressure tests to ensure structural integrity and reliability under operational conditions.
Special Features:
Wall Thickness: Incorporated a wall thickness of 3 mm to provide added strength and durability.
Height Specification: Ensured that the design maintained a ground clearance of 100 mm, allowing for proper drainage and maintenance access.
Inlet/Outlet Flange Connection: Implemented a 50 mm flange connection for seamless integration with existing water treatment systems, simplifying installation.
Results
Successful Deployment: Once the multi cartridge filter housing was manufactured and assembled, it was successfully integrated into the client’s filtration system, meeting all specified criteria.
Enhanced Filtration Efficiency: The client reported improved filtration performance, significantly reducing maintenance downtime and increasing the overall efficiency of their water treatment processes.
Client Satisfaction: The project was completed on schedule, and the client expressed high satisfaction with the final product quality and operational results.
Conclusion
This case study exemplifies our commitment to providing tailored filtration solutions that meet stringent specifications for our clients. By collaborating closely with our American customer, we delivered a robust Multi Cartridge Filter Housing that significantly enhanced their filtration capabilities in high-pressure conditions.
