Provide OEM Service for Pleated Filter Cartridge in Designing & Manufacturing
We provide comprehensive OEM services for pleated filter cartridges, covering the entire process from concept design to mass production. Our engineering team works closely with customers to develop customized filtration solutions based on specific application requirements, including flow rate, micron rating, operating pressure, and chemical compatibility.
During the design phase, we offer material selection guidance such as PP, PES, PTFE, or glass fiber media, ensuring optimal performance and durability. We also customize key structural components including end caps, core materials, pleat configuration, and sealing methods to match your system specifications.
In manufacturing, we utilize advanced pleating technology and precision welding processes to ensure consistent quality and high filtration efficiency. Strict quality control is implemented throughout production, including integrity testing, dimensional inspection, and performance validation.
Additionally, we support private labeling, custom packaging, and flexible production volumes to meet OEM branding and market needs. Whether for water treatment, food & beverage, pharmaceuticals, or industrial processes, our OEM service ensures reliable, high-performance pleated filter cartridges tailored to your business.
Pleated Filter Cartridges
- General-purpose, cost-effective
- Good chemical resistance
- Widely used in water treatment
- Hydrophobic membrane
- Excellent for gas and solvent filtration
- Strong chemical and temperature resistance
- Hydrophilic membrane
- High flow and low protein binding
- Ideal for pharma and food applications
- Strong and abrasion-resistant
- Suitable for solvents and oils
- Reusable in some cases
Why choose Lvyuan Pleated Filter Cartridge?
With over 10 years of manufacturing experience, we deliver high-quality pleated filter cartridges with strict quality control and fast lead times. Our strong engineering team provides customized solutions to meet diverse industrial needs. We use premium raw materials and advanced production equipment to ensure stable performance and long service life.
We also offer flexible OEM/ODM services, competitive pricing, and responsive technical support. From design to delivery, we focus on reliability, efficiency, and customer satisfaction, helping you gain a competitive edge in your market
Differences Between Types
| Type | Filtration Type | Temp Resistance | Chemical Resistance | Best Use |
|---|---|---|---|---|
| PP | Depth/Surface | Low–Medium | Good | Water treatment |
| PES | Membrane | Medium | Moderate | Pharma, food |
| PTFE | Membrane | High | Excellent | Chemicals, gas |
| Glass Fiber | Depth | High | Moderate | Pre-filtration |
| Nylon | Surface | Medium | Good | Solvents, oils |
Key Features & Benefits
- Large Filtration Area – Pleated design increases capacity
- High Flow Rate – Reduced pressure drop
- Fine Filtration Precision – Down to 0.1 µm or lower
- Long Service Life – Higher dirt holding capacity
- Wide Compatibility – Multiple materials for various fluids
- Easy Installation – Standard sizes (10″, 20″, 30″, 40″)
- Low Operating Cost – Fewer replacements required
Working Principle
Liquid or gas flows from the outside to the inside (or vice versa) through the pleated media.
Contaminants are captured on the surface or within the membrane, while clean fluid exits through the core.
Main Components
- Filter media (PP, PES, PTFE, etc.)
- Inner core (PP or stainless steel)
- End caps (DOE, 222, 226, etc.)
- Outer cage/support layer
- Sealing O-rings (EPDM, silicone, Viton)
Applications
💧 Water Treatment
- RO pre-filtration
- Industrial process water
🧪 Chemical Industry
- Corrosive liquids and solvents
- Fine chemical filtration
🍺 Food & Beverage
- Beer, wine, juice filtration
- Syrups and edible oils
💊 Pharmaceutical
- Sterile filtration
- High-purity liquid processing
⚡ Electronics & Power
- Ultrapure water systems
- Cooling water filtration
🌫️ Gas Filtration
- Compressed air
- Steam and vent filtration
How to Customize Pleated Filter Cartridges:
1. Filter Media Selection
- PP → economical
- PES → high purity
- PTFE → chemical resistance
- Nylon → durability
2. Micron Rating
- 0.1–1 µm → fine/sterile filtration
- 5–20 µm → general filtration
- 50+ µm → pre-filtration

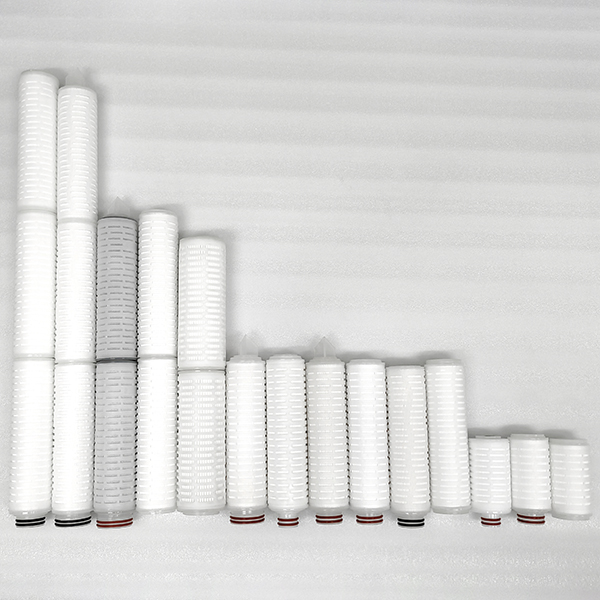

3. Size & Length
- Standard: 10″, 20″, 30″, 40″
- Custom lengths available

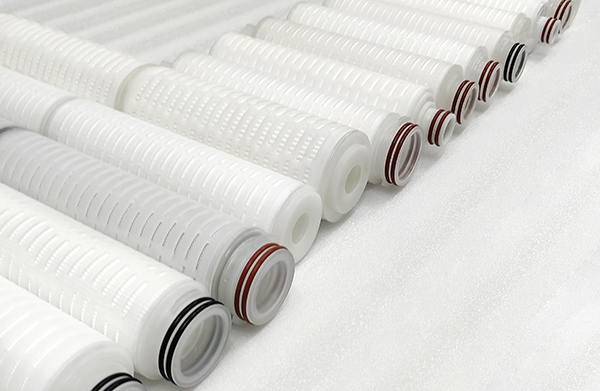

4. End Cap Type
- DOE (double open end)
- 222 / 226 O-ring connections
- Flat or fin type
5. Core & Support
- PP core (standard)
- Stainless steel core (high temp/pressure)
6. Sealing Material
- Silicone, EPDM, Viton, PTFE
7. Special Options
- Hydrophilic / hydrophobic treatment
- High-flow design
- Absolute-rated membranes
- FDA-grade materials
FAQ
1. What is the advantage of pleated vs melt blown filters?
Pleated filters have higher surface area and longer life.
2. Are pleated cartridges reusable?
Some types (nylon, PTFE) can be cleaned and reused.
3. What micron rating should I choose?
Based on particle size and downstream requirements.
4. Can they be used for gas filtration?
Yes, especially PTFE hydrophobic filters.
5. Are they customizable?
Yes, fully customizable in media, size, and structure.
