Multi Cartridge Filter Housing Stainless Steel 304/316

  • Constructed with stainless steel 316, corrosion-resistant, and durable.
  • Designed with multiple filter cartridges to effectively remove various impurities.
  • Suitable for various industrial  including food processing, chemical, pharmaceutical.
  • Offered customizable solutions to meet specific customer requirements.

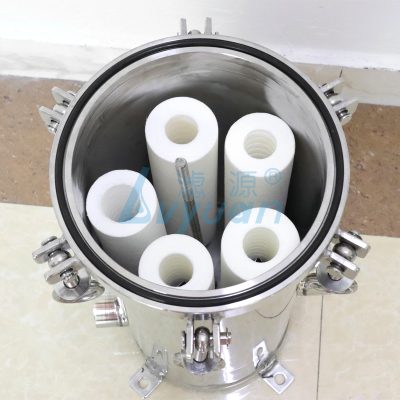

  • It can hold 4, 5, 7  or cartridges.

Lvyuan is a manufacturer of multi-cartridge filter housings made of stainless steel.  These filter housings are designed to accommodate multiple filter elements and can filter liquid and bacteria with high accuracy and speed.  They are made of high-quality stainless steel, such as sus316L or 304 stainless steel, and are resistant to acid and alkali, corrosion, and leakage. .Lvyuan’s multi-cartridge filter housings are available in different sizes and can be customized according to the specific needs of their customers.  They are easy to install and maintain, and Lvyuan provides installation instructions for their customers.

Design pressure: 0.6mpa/1.0mpa
Maximum operating temperature: 130°C
Sterilization online or pressure cooker: 121 °C/ 30 min
Polishing type mirror polishing / sand blasting
Polishing accuracy: 0.3 μ M / outer wall 0.4 μ m
Filter housing: SS304/SS316L
Sealing ring /gasket: silicon, fluorine,EPDM

Multi Cartridge Filter Housing drawing

    It Can Be Customized According To Customer Needs

    Number of filter elements(cores)1、3、5、7、9、11、13、15、19、25、35、50
    Size of filter element (inch)5、10、20、30、40、50
    Accuracy of filter element( μ m)0.1/0.22/0.45/1/5/10/25/50
    Category of filter elementPP filter cartridge, string wound filter cartridge.Pleated filter cartridge, Titanium filter cartridge
    Material of filterSUS304/SUS316/SUS316L
    Operating pressure of filter (MPA)0.1-0.6-1
    RemarksThe size and structure of the filter  depend on the Flow rate
