Bag Filter Housing Manufacturer

High-quality stainless steel 304 or 316
Single-bag filters feature superior sealing for absolute tightness and strong pressure resistance.
Widely applicable and flexibly installable.
Inner surface can be coated with fluorine lining for corrosion resistance, meeting the requirements of strong acids and alkalis.
Available in jacketed structure to meet the needs of insulation filtration.
Complete specifications with a variety of rubber sealing rings available, adaptable to different chemical materials.

Provide OEM Service for Bag Filter Housing in Designing & Manufacturing

At Lvyuan, we specialize in customizing bag filter housing solutions to meet the unique needs of our clients. With our extensive expertise and state-of-the-art manufacturing facilities, we work closely with customers to understand their specific requirements and design bespoke bag filter housing solutions that deliver optimal filtration performance and efficiency. Whether you need stainless steel (304 or 316) bag filter vessels for industrial applications or wholesale quantities for your business, our team is committed to providing tailored solutions that exceed your expectations. Partner with Lvyuan for custom bag filter housing solutions designed to elevate your filtration processes to new heights of excellence.
Get in touch with us today to explore our range of stainless steel filter housing, or to discuss your unique requirements. Let Lvyuan be your reliable partner for high-quality filtration solutions tailored to your needs. Contact us now to start enhancing your filtration processes.
single bag filter housing

More Filter Housings

top entry bag filter housing
Top Entry Bag Filter Housing
Tri Clamp Bag Filter Housing
Tri Clamp Bag Filter Housing

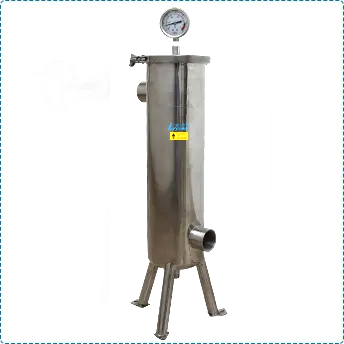

single bag filter housing
Single Bag Filter Housing

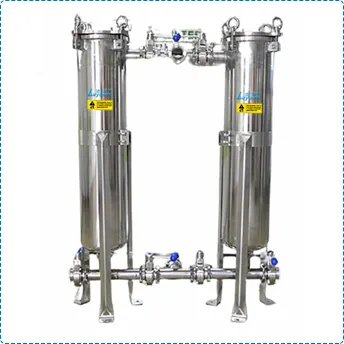

duplex bag filter housing
Duplex Bag Filter Housing

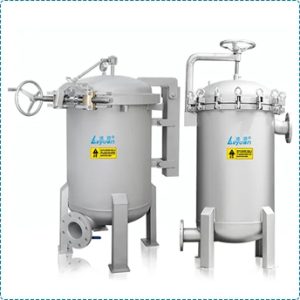

multi bag filter housing
Multi Bag Filter Housing
PP Bag Filter Housing
PP Bag Filter Housing

Why Choose Lvyuan Bag Filter Housing?

When considering bag filter housing solutions, choosing Lvyuan offers several compelling advantages:

  • Exceptional Quality: Top-quality bag filter housing solutions crafted from premium materials, including stainless steel (304 or 316).
  • Customization:  Tailored to meet specific needs, ensuring optimal filtration performance and efficiency.
  • Expertise and Experience: With years of experience in the industry, Lvyuan possesses extensive expertise in designing, manufacturing, and supplying bag filter housing solutions.
  • Customer Focus: Srive to exceed expectations by offering responsive customer service, timely delivery, and competitive pricing.

Stainless Steel Bag Filter Housing Specifications

Made of SUS316L or SUS304 stainless steel, sand blast & mirror polishing, no dead space, small flow resistance, reasonable structure design, simple installation of filter bag, acid and alkali corrosion resistance, convenient cleaning and disinfection, can be applied with different filter bag according to the need, meet the GMP requirement, suitable for food and pharmaceutical industries filtration.
MaterialSS304/SS316L
Filter bag quantitySingle or Multi-bags
Surface treatmentPolished/Sandblast
Installed typeQuick opening, lifting bolts, flange, clamp
Port size1/2″, 3/4″, 1″, 1.5″, 2″
Inlet/outlet connectionThread, Flange, Pogoda
Seal O-ringSilicon,NBR, EPDM, Viton
UsageLiquid
Max. Working pressure150-200PSI
AccepteOEM customized

What is Bag Filter Housing?

It is a type of air pollution control device used to capture particulate matter and dust from industrial processes. It consists of a large housing or chamber containing fabric bags or tubes, which act as filters. As dirty air flows through the bag house, the particulate matter is captured on the surface of the fabric bags, while the cleaned air is allowed to pass through and exit the system.
Periodically, the accumulated dust is removed from the fabric bags through techniques such as shaking, pulse-jet cleaning, or mechanical agitation, depending on the specific design of the bag house. Bag house filters are commonly used in industries such as cement production, steelmaking, power generation, woodworking, and pharmaceutical manufacturing to improve air quality and comply with environmental regulations.

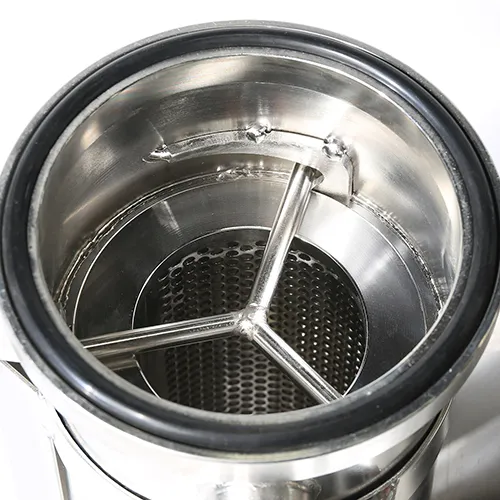

bag filter housings
liquid bag vessel

How Does a Bag Filter Housing Work?

The stainless steel bag filter housing works by trapping particulate matter from a liquid stream as it passes through a series of filter bags contained within the housing. Here’s how it typically works:
  • Liquid Flow: The liquid to be filtered enters the bag filter housing through an inlet port.
  • Distribution: Inside the housing, the liquid is evenly distributed across the filter bags to ensure uniform filtration.
  • Filtration: As the liquid flows through the filter bags, particulate matter and contaminants are trapped on the surface of the bags while the clean liquid passes through.
  • Accumulation: Over time, the trapped particles accumulate on the surface of the filter bags, forming a cake layer.
  • Cleaning or Replacement: Depending on the design of the bag filter housing, the filter bags are periodically cleaned or replaced to remove the accumulated particles.
  • Discharge: The clean liquid exits the housing through an outlet port, ready for further processing.
  • Disposal: The collected particulate matter, known as filter cake, is typically disposed of in accordance with regulatory requirements.

What is Better a Bag House or a Pleated Filter?

Determining whether a bag house filter or pleated filter is better depends on various factors, including the specific application requirements, operating conditions, and filtration goals. Here’s a comparison of both:
filter bag

Filter Bag:

  • Capacity: Typically have larger filtration capacities compared to pleated filters.
  • Particle Size: Effective at capturing a wide range of particle sizes, including larger particles and dust.
  • Maintenance: Require less frequent maintenance compared to pleated filters.
  • Versatility: It can handle a wide range of temperatures, pressures, and flow rates.

Pleated Filters:

  • Efficiency: Provide higher filtration efficiency for fine particles compared to bag filters.
  • Space-Saving: Pleated filters are compact and space-saving, making them ideal for installations with limited space.
  • Ease of Installation: easier to install and replace compared to bag filters.
  • Customization: Pleated filters can be customized to meet specific filtration requirements, including different media types, sizes, and configurations.
CTA Form

Find the Right Bag Filter Housing for Your Process

Tell us what liquid you’re filtering, your target flow rate, and your operating pressure. If you know your target micron rating or inlet and outlet sizes, include them too. Lvyuan will help you choose a single-bag, multi-bag, or duplex housing and quote a standard or custom configuration.
