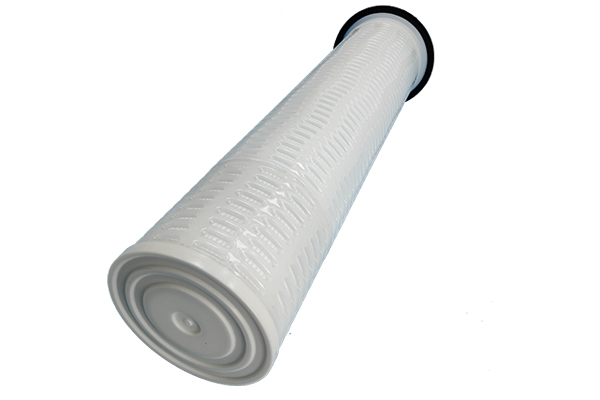

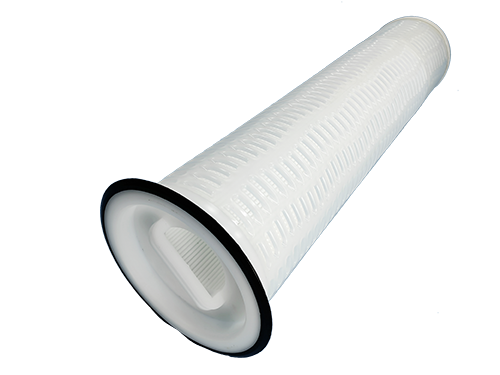

Lvyuan- BNBC Series High Flow Filter Cartridge
The BNBC Series High Flow Filter Cartridge is designed for industrial high-flow liquid filtration with excellent dirt-holding capacity, stable performance, and easy installation. Featuring a 6-inch / 152mm large diameter, pleated polypropylene media, and multiple micron ratings from 0.5μm to 120μm, it helps reduce filter quantity, replacement frequency, equipment investment, and labor cost. It is suitable for seawater desalination, food and beverage, machinery, chemical processing, and power plant water treatment.
Provide OEM Service for BNBC Series High Flow Filter Cartridge in Designing & Manufacturing
The BNBC Series High Flow Filter Cartridge is a high-performance filtration solution developed for large-flow industrial liquid filtration systems. It combines excellent contaminant holding capacity, economical operating cost, and convenient replacement, making it ideal for applications that require stable filtration performance and reduced maintenance workload.
With its 6-inch / 152mm large-diameter structure, the BNBC cartridge provides a much larger filtration area than standard filter cartridges. This high-flow design allows fewer cartridges to handle the same flow rate, helping users reduce filter housing size, equipment investment, installation space, replacement frequency, and waste disposal cost.
The cartridge uses pleated deep-layer polypropylene membrane media, offering strong particle retention and high dirt-holding capacity. Its gradient pore structure improves filtration efficiency while maintaining stable flow performance. The large diameter and high filtration area make it especially suitable for demanding industrial applications with heavy contaminant loading.
The BNBC Series is available in multiple filtration ratings, including 0.5μm, 1μm, 3μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm, and 120μm, allowing flexible selection according to different process requirements. It supports two length options: 16 inch / 370mm and 32 inch / 634mm, with flange types designed for different filter housing connections.
Made with polypropylene filter media, polypropylene support layer, polypropylene cage, polypropylene end cap, and polypropylene core, the cartridge offers good chemical compatibility for many industrial water and process liquid conditions. Seal material options include EPDM, silicone, and fluororubber, helping meet different fluid compatibility needs.
The BNBC high flow cartridge is widely used in seawater desalination, food and beverage filtration, machinery and equipment filtration, chemical process filtration, industrial water filtration, and power plant water treatment. Its integrated structural design and convenient installation make it a reliable choice for high-flow filtration systems.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | BNBC Series High Flow Filter Cartridge |
| Outer Diameter | 6 inch / 152 mm |
| Length Options | 16 inch / 370 mm, 32 inch / 634 mm |
| Filter Media | Pleated deep-layer polypropylene membrane |
| Support / Drainage Layer | Polypropylene |
| Cage Material | Polypropylene |
| End Cap Material | Polypropylene |
| Core Material | Polypropylene |
| Seal Material Options | EPDM, silicone, fluororubber |
| Micron Ratings | 0.5μm, 1μm, 3μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm, 120μm |
| Maximum Operating Temperature | 80°C |
| Maximum Differential Pressure | 3.4 bar at 60°C |
| Recommended Change-Out Differential Pressure | 2.4 bar at 20°C |
| Flange Type | B type for 177mm outlet diameter; C type for 183mm outlet diameter |
Key Features & Benefits
High-Flow Filtration Design
The 6-inch large-diameter structure provides high flow capacity and reduces the number of cartridges needed in the system.
Large Filtration Area
Pleated PP media offers a large effective filtration area, high dirt-holding capacity, and longer service life.
Cost-Saving Operation
Fewer cartridges help reduce equipment investment, housing size, replacement cost, labor cost, and waste treatment cost.
Strong PP Construction
The filter media, support layer, cage, end caps, and core are made from polypropylene for reliable performance and chemical compatibility.
Easy Installation and Replacement
The cartridge can be installed and replaced quickly, helping simplify maintenance work and reduce downtime.
Wide Micron Rating Range
Available from 0.5μm to 120μm, suitable for both fine filtration and pre-filtration applications.
Applications
The BNBC Series High Flow Filter Cartridge is suitable for:
Seawater desalination pretreatment
Food and beverage filtration
Machinery and equipment filtration
Chemical process filtration
Industrial water filtration
Power plant water treatment
Cooling water filtration
Process liquid filtration
RO system pretreatment
General high-flow liquid filtration
