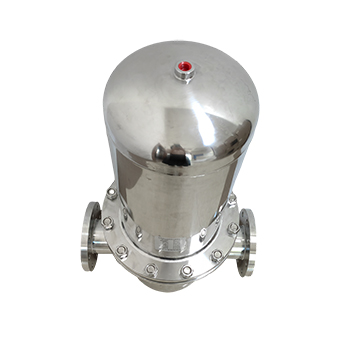

High Pressure Stainless Steel Steam Filter

How does tainless steel steam filter work?

The working concept of the stainless-steel steam filter is based on physical filtration, with the complying with particular process:
When steam containing contaminations goes into the filter housing, it flows along certain networks. The steam first enters into contact with the filter element inside the filter, which is typically made from materials such as steel mesh, sintered metal, or porous ceramic, including an uniform microporous structure.
Under vapor pressure, the steam can pass through the microporous framework of the filter element, while strong particles, water beads, oil residues, and other contaminations in the steam, due to their fragment size being bigger than the microporous dimensions of the filter aspect, are kept by the filter component.

The filtered clean heavy steam is released from the filter electrical outlet and enters subsequent vapor pipelines or devices, consequently achieving steam purification. On the other hand, the preserved impurities collect on the filter aspect surface area or at the bottom of the filter and can be cleaned with routine drain or filter element replacement.

How is stainless steel steam filter filtration mechanism?

• Mechanical Filters: These filters physically trap solid particles and contaminants present in steam through mechanisms like sieving, interception, and inertial impaction.
• Coalescing Filters: Coalescing filters use specialized media to capture and coalesce liquid droplets present in steam, allowing them to form larger droplets that can be drained away.
• Adsorptive Filters: Adsorptive filters utilize activated carbon or other adsorbent materials to remove impurities, such as oil vapors or odors, from steam through adsorption.

What are the benefits of Stainless steel steam filter?

High-grade products: Manufactured making use of high-quality stainless steel (such as 304, 316, and so on), it uses outstanding deterioration resistance and high-temperature resistance, capable of withstanding the rough conditions of heavy steam systems and guaranteeing a lengthy service life.
High-efficiency purification: Equipped with high-precision filter cartridges, it effectively filters solid bits, water beads, oil residues, and various other pollutants from vapor, accomplishing a purification performance of over 99.9%, making sure the tidiness of the output vapor fulfills pertinent industry requirements.
Stable and Reliable: The filter includes a properly designed structure with outstanding sealing efficiency, preventing steam leakage and making certain secure system procedure. It can operate continually under high working stress and temperature problems, satisfying the demands of different vapor systems.
Easy Maintenance: The filter cartridge is easy to replace, and the filter is convenient to dismantle and clean, lowering downtime for upkeep and lowering functional prices. Some models are equipped with a drain shutoff for normal removal of entraped pollutants.
High conformity: Adhere to market criteria such as food-grade and pharmaceutical-grade specs (e.g., FDA, GMP), making use of safe and non-toxic materials that do not infect products in contact with heavy steam.

What filter cartridges are used for steam filter?

• Cartridge Filters: Consist of replaceable cartridges containing filter media such as pleated paper, woven mesh, or porous ceramics, enclosed in a housing.
• Bag Filters: Utilize filter bags made of woven or nonwoven fabric to capture contaminants, typically housed in a vessel with a top-loading or bottom-loading configuration.
• Inline Filters: Installed directly in the steam line, these filters often consist of a stainless steel or other corrosion-resistant housing with replaceable filter elements.

What are the applications for steam filter?

• Process Steam Filters: Designed for industrial processes where high-quality steam is required for applications such as sterilization, heating, and drying.
• Power Generation Steam Filters: Used in power plants and steam turbines to remove contaminants from boiler feedwater and prevent damage to turbine blades and other components.
• Cleanroom and Laboratory Steam Filters: Employed in cleanroom environments and laboratories to ensure the purity of steam used in sensitive processes or equipment.

How is team filter operating conditions?

• High-Temperature Filters: Designed to withstand high temperatures commonly found in steam systems without degradation or loss of filtration efficiency.
• High-Pressure Filters: Engineered to withstand the high pressures present in steam systems, they ensure reliable filtration performance without compromising structural integrity.

How is team filter size and capacity?

• Small-scale Filters: Suitable for low-flow or intermittent steam applications, such as laboratory equipment or small-scale process equipment.
• Large-scale Filters: Designed for high-flow or continuous steam applications, such as industrial boilers, power plants, or large-scale manufacturing processes.

Installation and Upkeep?

( 1) Setup Steps.
Follow the tools installment illustrations to select an ideal installation location, making certain that the filter inlet and electrical outlet instructions align with the heavy steam circulation direction and are hassle-free for operation and maintenance.
Clean debris from the vapor pipe prior to installation to stop particles from getting in the filter and affecting filtering performance.
Install utilizing the appropriate connection technique (flange or threaded), making certain the sealing gasket is appropriately installed to stop steam leakage.
After setup, conduct a pressure examination to check for leakages. Just taken into use after validating no concerns.

( 2) Upkeep Points.
Routinely check the pressure difference in between the filter inlet and electrical outlet. When the stress distinction surpasses the specified value (normally 0.1 MPa), immediately change the filter cartridge.
When changing the filter aspect, first shut the valves before and after the filter to launch inner stress, then dismantle the filter real estate, eliminate the old filter element, mount the new filter aspect, and reassemble the unit.
Regularly open up the drainpipe valve to eliminate impurities and condensate from all-time low of the filter; it is advised to do this at least as soon as a week.
When the equipment is still for an extended period, tidy the inner pollutants, dry it thoroughly, and store it effectively to stop rusting.
