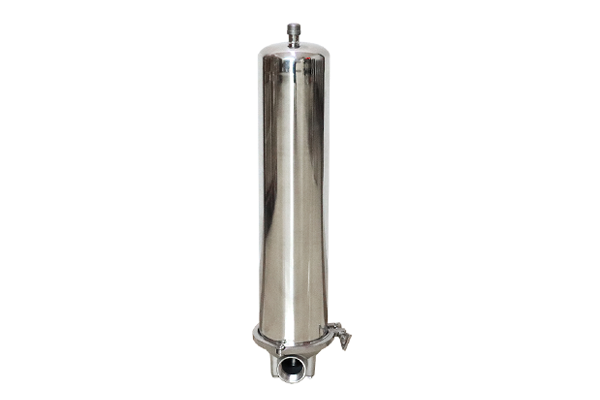

4.5”x10” 4.5”x20” Big Blue Stainless Steel Single Cartridge Filter Housing
- Supports a single filter cartridge for precise filtration.
- User-friendly design for simple cartridge replacement and cleaning.
- Ideal for food, beverage, pharmaceutical, chemical, and water treatment.
- Space-saving, suitable for limited installation areas.
- Prevents leaks, ensuring reliable performance.
Product Features:
- Inlet & outlet sizes are 1/2″, 3/4″. 1″ for easy installation.
- Working pressure 8 kg/0.8 MPa and 10 kg/1.0 MPa is supported.
- Use the tap water pressure to provide power, no power consumption.
- Wall-mounted, counter-top, very simple installation.
- It is suitable for use in the water mat switch, the pre filtration system, and RO system protection.
- Resistance to strong acids and alkalis.
- It is low-cost, and fits different kinds of filter elements.
Structure:
- Housing material: 304 or 316L stainless steel, the housing body, through inside and outside polishing, meets the sanitary grade.
- Inside with the silicone gasket can be applied to both cold & hot water temperatures.
- High pressure resistance, corrosion resistance.
Få et tilbud i dag!

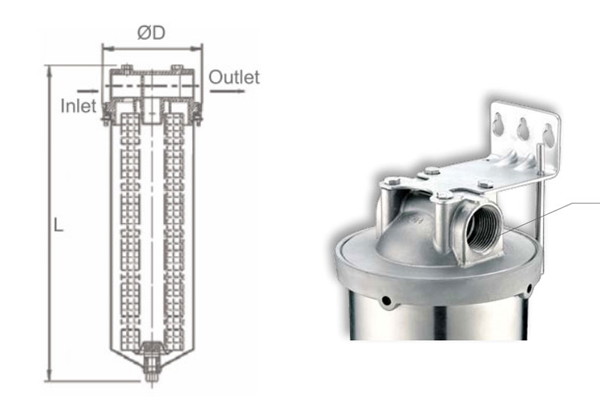

Stainless Steel Single Cartridge Filter Housing Specification:
DOE 222+Fin
| NEJ. | A(mm) | B(mm) | C(mm) | Ind/ud | ||
|---|---|---|---|---|---|---|
| LY-FL-SC-L1 | 275 | 355 | φ89 | 3/4” 1” | ||
| LY-FL-SC-L2 | 525 | 605 | φ89 | 3/4” 1” | ||
| LY-FL-SC-L3 | 775 | 855 | φ89 | 1” | ||
| LY-FL-SC-L4 | 1025 | 1105 | φ89 | 1” | ||
226+Fin
| NEJ. | A(mm) | B(mm) | C(mm) | Ind/ud | ||
|---|---|---|---|---|---|---|
| LY-FL-SC-L1 | 305 | 385 | φ89 | 3/4” 1” | ||
| LY-FL-SC-L2 | 555 | 635 | φ89 | 3/4” 1” | ||
| LY-FL-SC-L3 | 805 | 885 | φ89 | 1” | ||
| LY-FL-SC-L4 | 1055 | 1135 | φ89 | 1” | ||

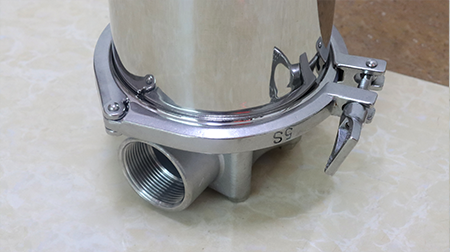

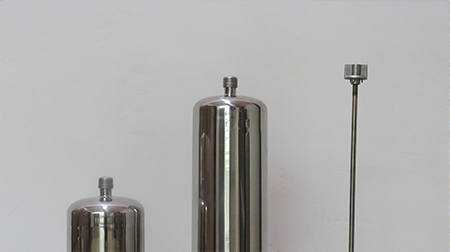

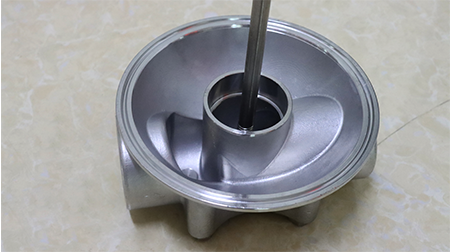

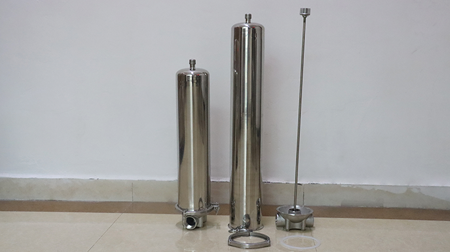

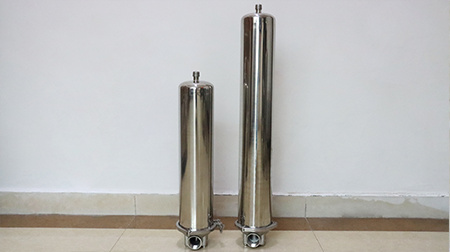

Stainless Steel Single Cartridge Filter Housing Details:
